China 2019 New Arrival Tractor Mounted Mobile Water Well Drilling Rig For 200m Depth

Product Categories
Chongqing Spring Tech And Trade Co., Ltd
Contact Now

China 2019 New Arrival Tractor Mounted Mobile Water Well Drilling Rig For 200m Depth

Model Number : CST-150T，200T,300T

Certification : ISO9001-2000

Place of Origin : China

MOQ : 1

Price : US+100+set

Payment Terms : T/T

Supply Ability : 500 a quarter

Delivery Time : one month

Packaging Details : Nude packing

Contact Now

Tractor Mounted Water Well Drilling Rig

Technical Specifications

model CST-150T CST-200T CST-300T
Power 22.1KW 37KW 44.2KW
Drilling Depth 150 m 200 m 300 m
Drilling hole diameter 90-235 mm 90-235 mm 130-325 mm
Working pressure 0.7-2.5MPa 0.7-2.5MPa 1.05-3.0MPa
Carriage stroke 1800/2000 1800/2000 mm 2400/3400 mm
Max. torque 3500 N.m 4500 N.m 6500N.m
Boost speed 20m/min 20m/min 20m/min
Rotation speed 60-80rpm 80/160 rpm 80/160 rpm
Drilling pipe length 1500 mm 1500 mm 2000/3000 mm
Static height 1950 mm 2150 mm 3300 mm
Adapt to rock hardness F=6-20 F=6-20 F=6-20
Air consumption 5-30m³/h 5-30m³/h 5-35m³/h
Min.ground clearance 400 mm 400 mm 400 mm
Lifting force 39200N 58800N 88200N
Climbing angle 30° 30° 30°
Drilling efficiency 10-35m/h 10-35m/h 15-35m/h
Drilling pipe diameter 76 mm 76/89 mm 76/89 mm
Total weight 2300(including tractor) 2700(including tractor) 6200(including tractor)
Overall dimension 3300*1350*1950 mm 3350*1450*2100mm 3900*1850*3300 mm
Fit DTH hammer 4/5/6 inches 4/5/6 inches 5/6/8 inches
Recommended air compressor 18m³/1.7 MPa 20m³/2.0 MPa 900-1200

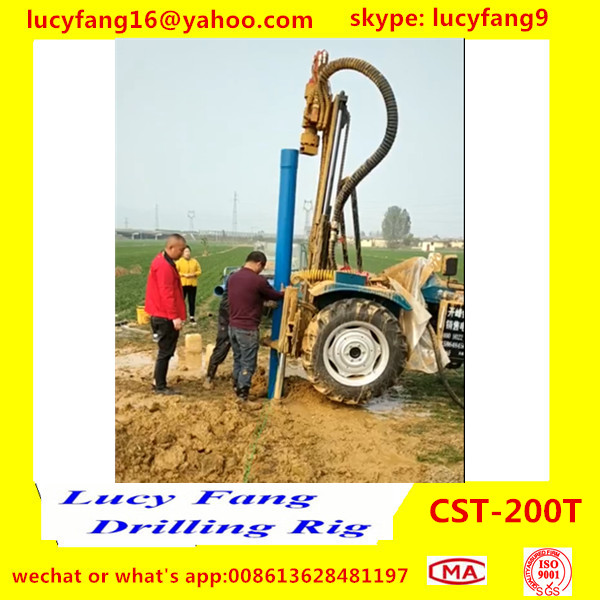

China 2019 New Arrival Tractor Mounted Mobile Water Well Drilling Rig For 200m Depth
